Wedge SC Scoring Balloon

Wedge SC is a low-profile, semi-compliant scoring balloon optimised to track and deliver like a conventional PTCA balloon for precise and controlled lesion preparation

• Single wire design provides focused and controlled scoring, whilst avoiding wire twists or stent interference
• Fixed nitinol wire is enveloped within the balloon fold for superior deliverability
• Coaxial rapid exchange design gives excellent push and tracking
• Tri-fold balloon technology allows multiple balloon rewrapping
• Low crossing profile: 0.0285” (Ø 1.5mm) and 0.0315" (Ø 3.0mm)
• 1.5mm - 4.0mm diameter and 5mm to 30mm lengths available
• Slider™ hydrophilic coating on external surface to aid lesion crossing
• Eel™ silicone coating within guidewire lumen for optimal balloon tracking

Recommended for

Media

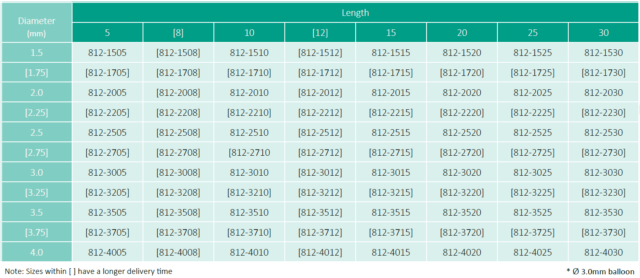

Ordering Information
